類別

T8燈管

平板燈

       LED T8燈管

▋圖片規格
一般規格 2 ft 4 ft
Lamp Diameter 25.9 mm 25.9 mm
Lamp Length 588 mm 1198 mm
Lamp Base G13 G13
Lamp Weight 205g 360g
Line Voltage 100-277VAC 100-277VAC
Line Frequency 47~63 Hz 47~63 Hz
Power Factor >0.98@AC120V
>0.9@AC277V		 >0.98@AC120V
>0.9@AC277V
Rated Lifetime >50,000 Hrs >50,000 Hrs
Storage Temp  -40°C ~ +60°C  -40°C ~ +60°C
Operation Temp -20°C ~ +40°C -20°C ~ +40°C
Length of Warranty 5 Years 5 Years

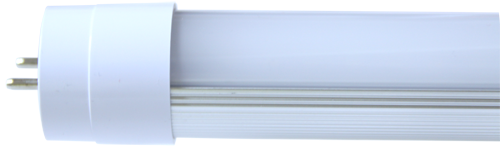

↑霧面Lens

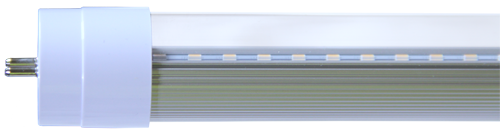

↑透明Lens



▋編碼原則
Type Length Power Input Voltage CRI CCT Beam Angle Serial No Lens Type
T8
T8 Tube		 A: 2FT
B: 4FT
C: 3FT
D: 5FT
E: 6FT
F: 8FT		 09: 9W
15: 15W
17: 17W		 1: 100~120 VAC
2: 200~240 VAC
3: 100~240 VAC
4: 12V AC/DC
5: 100~277 VAC
6: 120~277VAC		 5: >80 1: 2700K
2: 3000K
3: 3500K
4: 4000K
5: 4500K
6: 5000K
7: 5700K
8: 6500K		 25: 25°
A2: 120°		 Start from A F: Frosted
C: Clear



▋產品規格
Model No. Wattage(W) CCT(K) CRI(Ra) Efficacy(lm/W) Lumen(Lm)
T8A09552A2AF 9W 2850~3200 >80 100 1000
T8A09552A2AC 9W 2850~3200 >80 110 1050
T8A09554A2AF 9W 3700~4250 >80 110 1100
T8A09554A2AC 9W 3700~4250 >80 120 1150
T8A09556A2AF 9W 5000~5300 >80 110 1100
T8A09556A2AC 9W 5000~5300 >80 120 1150
T8B15552A2AF 15W 2850~3200 >80 115 1750
T8B15552A2AC 15W 2850~3200 >80 125 1850
T8B15554A2AF 15W 3700~4250 >80 120 1800
T8B15554A2AC 15W 3700~4250 >80 130 1950
T8B15556A2AF 15W 5000~5300 >80 120 1800
T8B15556A2AC 15W 5000~5300 >80 130 1950
T8B17552A2AF 17W 2850~3200 >80 115 1900
T8B17552A2AC 17W 2850~3200 >80 125 2000
T8B17554A2AF 17W 3700~4250 >80 120 2100
T8B17554A2AC 17W 3700~4250 >80 130 2250
T8B17556A2AF 17W 5000~5300 >80 120 2100
T8B17556A2AC 17W 5000~5300 >80 130 2250
